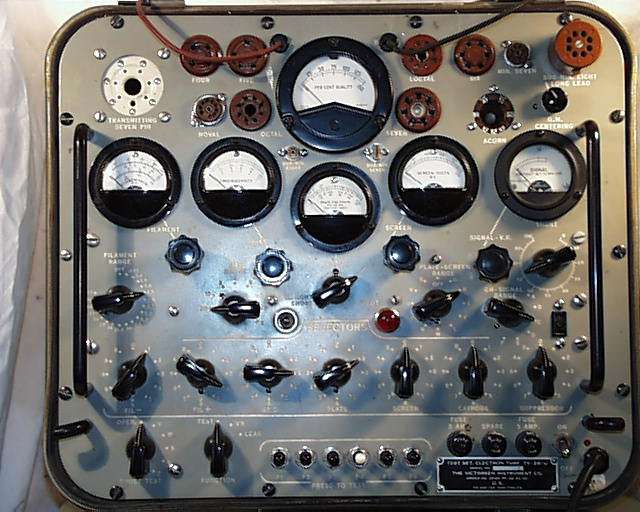

The TV-2 was designed by Hickok for the US military. This an impressive looking tester with no less than 5 meters on the front panel. It takes a little longer to set up than most testers, but should give more accurate results than most testers. Of course, this tester uses the transconductance method for measuring tube quality. I don't recommend this tester for someone who is not technically savvy. It takes a bit to set it up correctly. This tester is well suited for the audiophile or antique radio enthusiast.
5 meters: filament voltage, bias voltage, plate-screen voltage, signal level and percent quality (transconductance)
Built in roll chart
4-5-6-7 pin, loctal, octal, subminiature, 7 & 9 pin minature, and septar sockets built in.
Plate & screen voltage continuously adjustable from 0 to 250 VDC
Bias continuously variable from 0 to -50 VDC
Neon light shorts test
Sensitive gas test
Includes roll chart supplement, and maintenance/operators manual
rugged waterproof case
